Unveiled at CES · January 2027
Alia360 3D
A true robot camera: 360° color and depth, plus the apps that make it useful on a robot.
Software
The apps robots need, running on day one

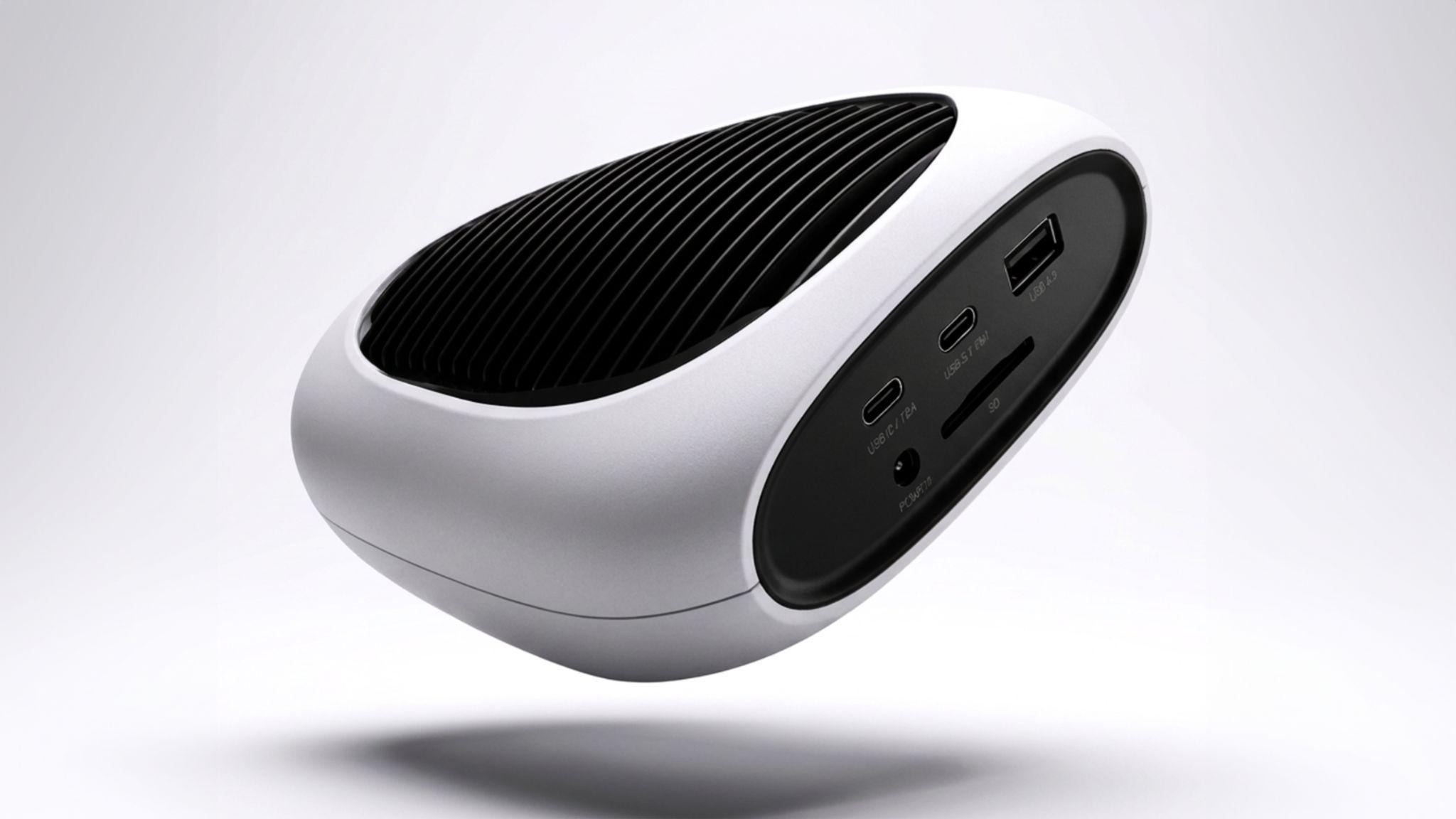

Every Alia360 3D ships with the full software stack on its compute unit. The compute unit is built on NVIDIA Jetson Orin NX and connects to the camera by cable, so it can sit on the robot's back, inside its body, or wherever there is room. LiDAR and thermal are available as add-ons.
SLAMObject detectionProximity detectionRemoval of personal information

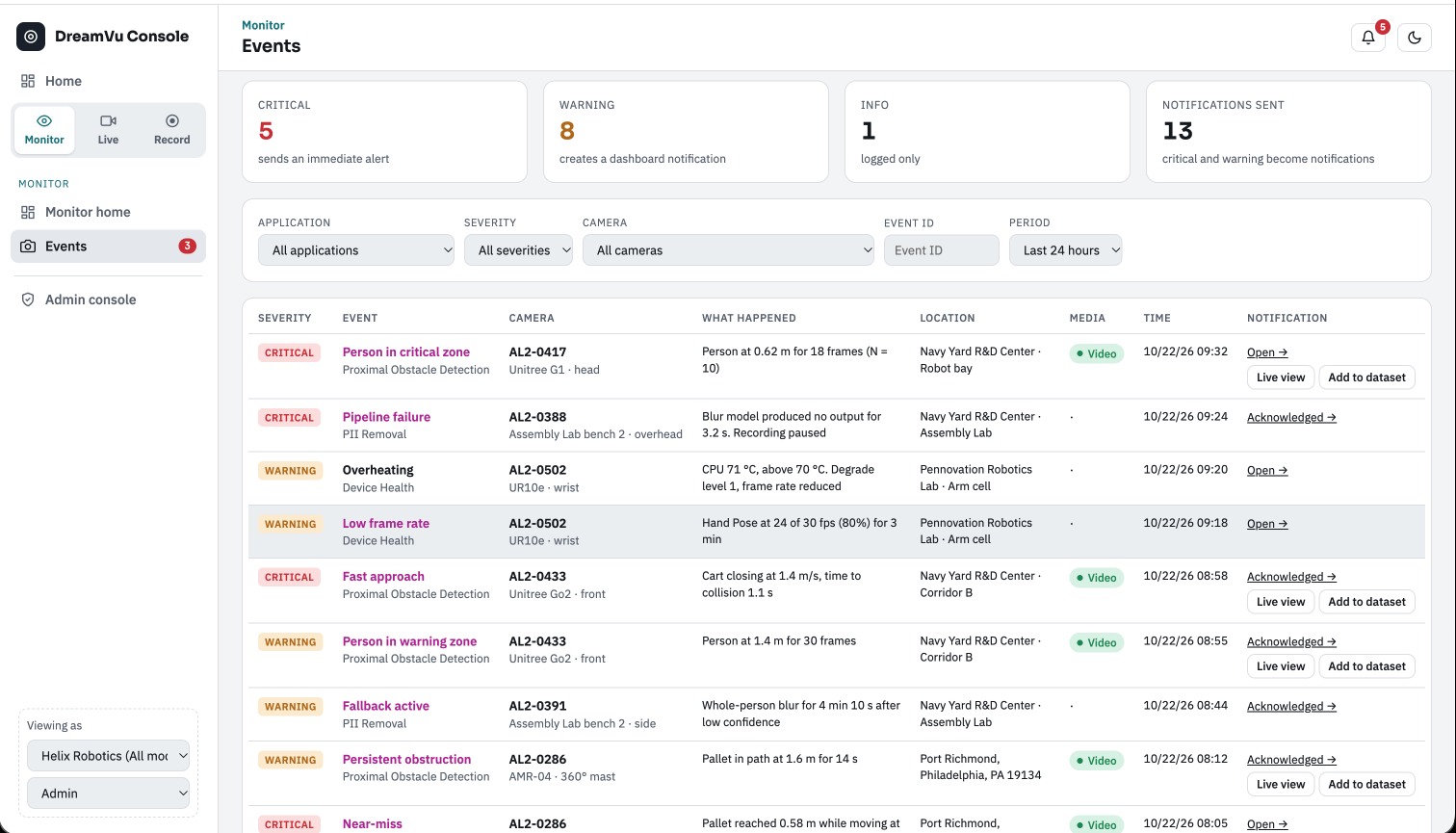

The dashboard
One dashboard for every camera
Register, monitor and operate every camera from one place.
Device tracking
Every camera, its location and its status.
Live streaming
Watch any camera's 360° view in real time.
Teleoperation
Operators see the full scene and look around without moving the robot.
Data recording
Full-resolution recordings, time-synced to your robot.
Remote updates
New apps and improvements delivered over the air.
API and SDK
Build your own applications on Alia360 3D.

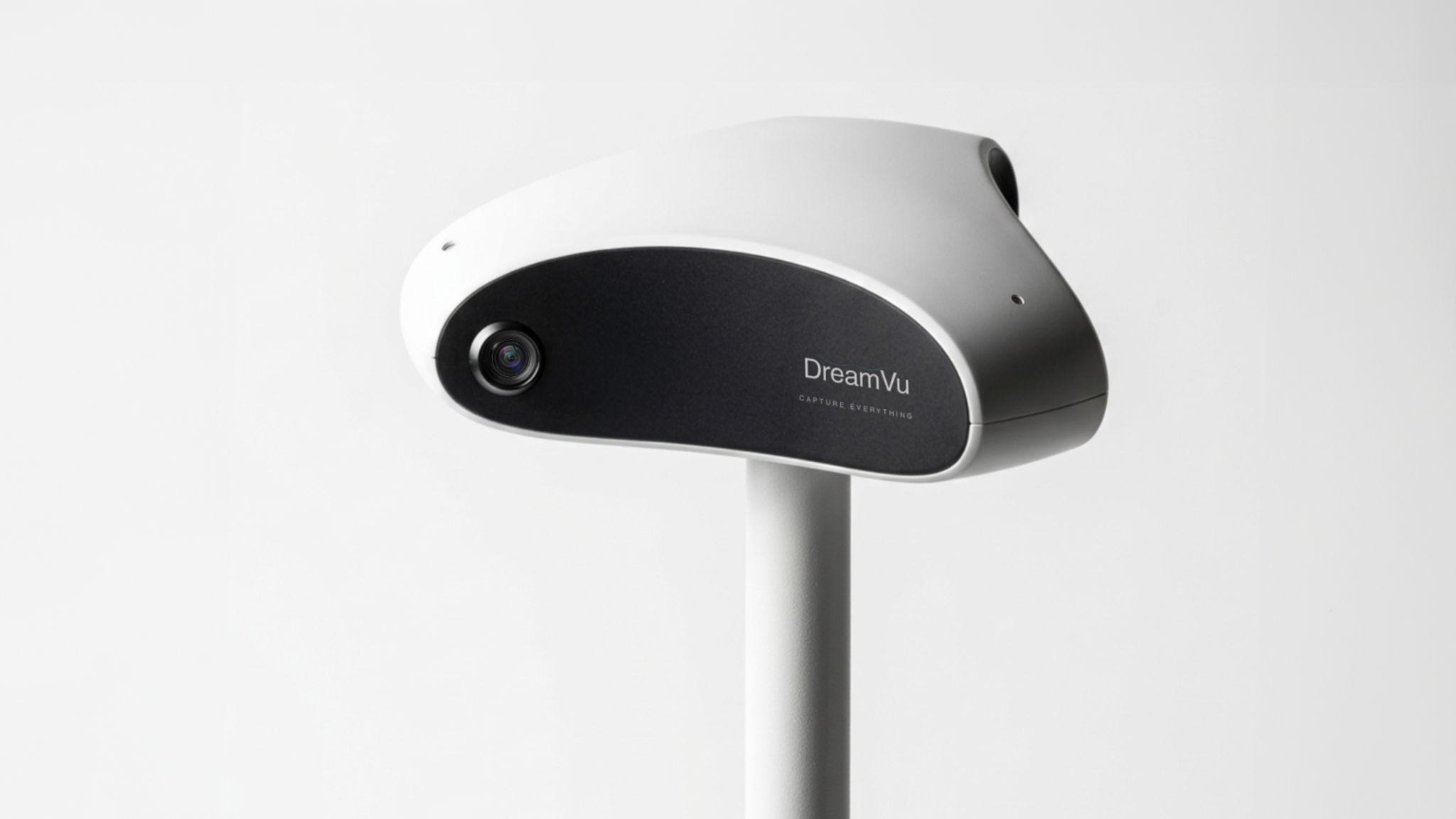

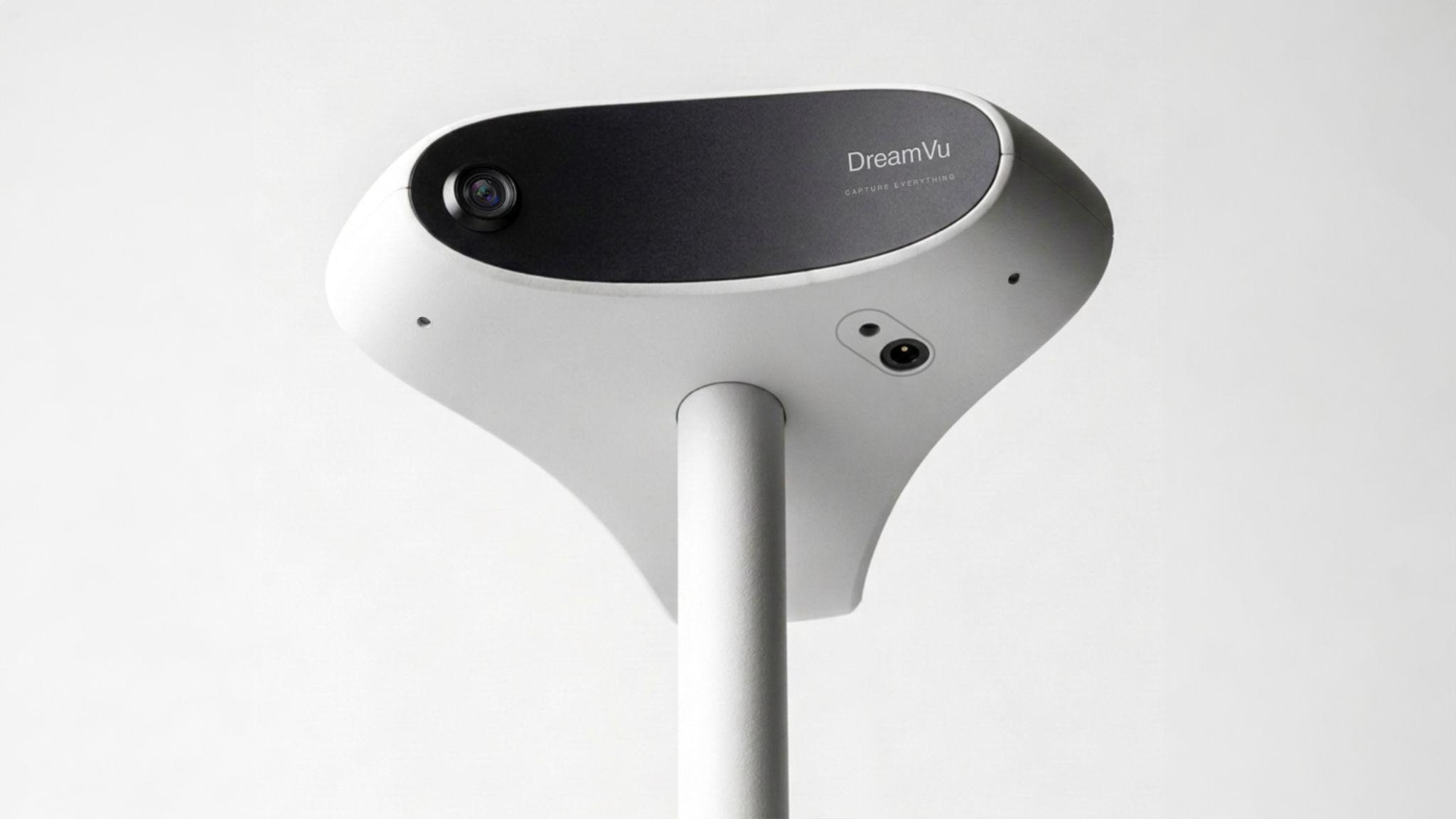

The camera
Three stereo stations in one unit

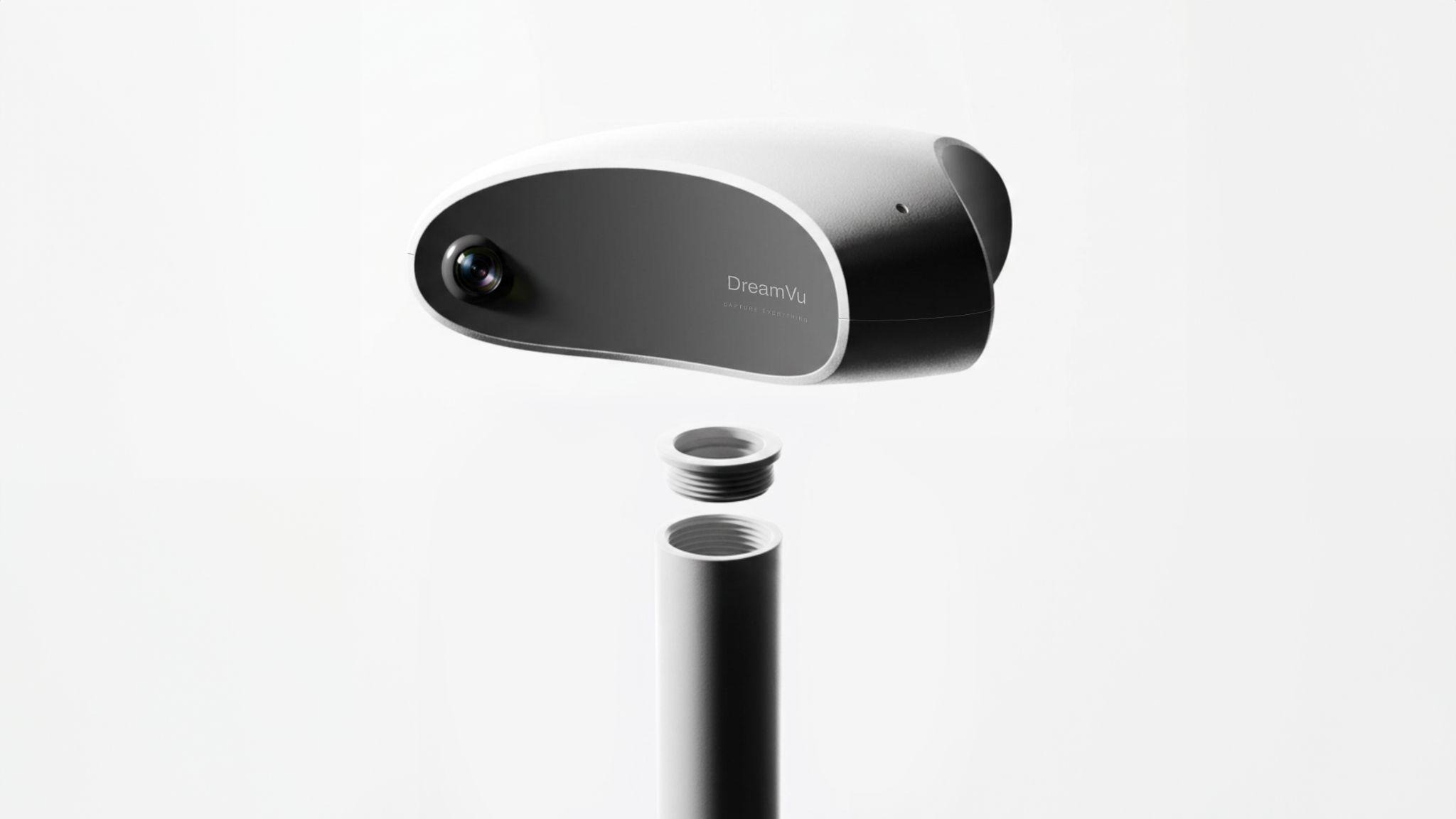

Alia360 3D brings its stereo cameras together in one continuous form, so it sees the full 360° with no blind side. It attaches with a single threaded mount.
Sample output
Real places, captured with Alia360 3D

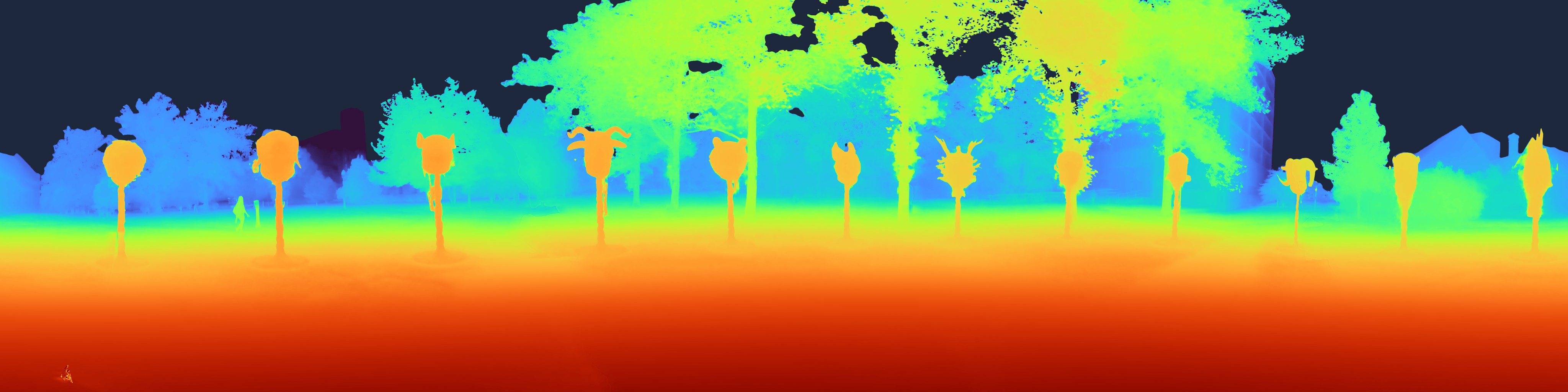

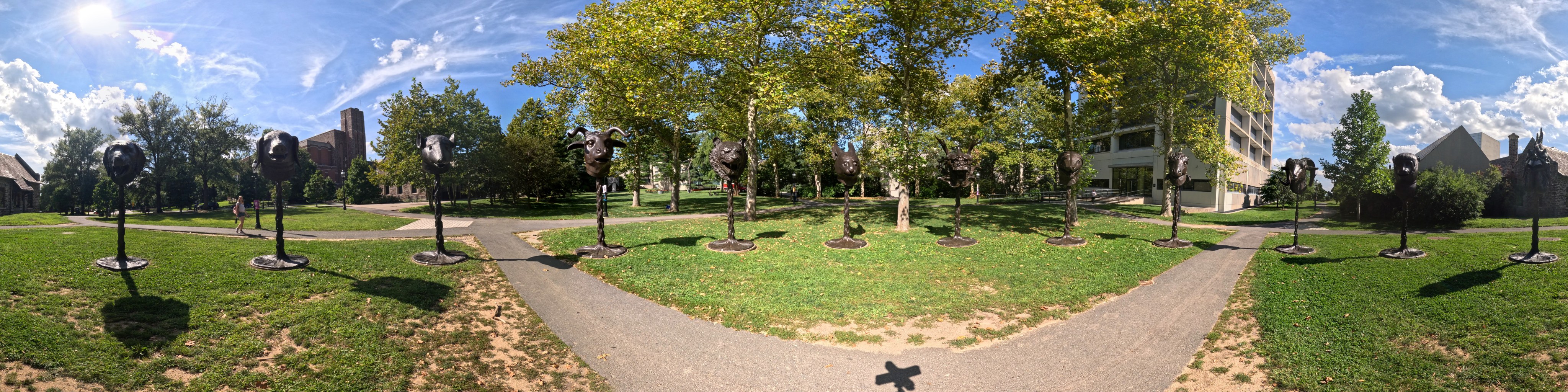

Each scene includes a color image, a depth map, and a 3D point cloud from the same instant.
City Hall, Philadelphia, PA
Philadelphia Museum of Art, Philadelphia, PA
How it works
Full 360° stereo from one camera
Alia360 3D uses stereo pairs arranged around a single optical unit. It captures the full 360° view in one shot. Depth is measured, not predicted, and it lines up with the color image because both come from the same optics.
Specifications
The camera
| Resolution | 6K |
| Field of view | 360° horizontal, 110° vertical |
| Depth | Stereo, aligned to color |
| Sensors | IMU, GPS |
| Outputs | Color, depth maps, point clouds |
Uses
What it is for
Teleoperation
The operator sees the whole scene around the robot from one camera.
Mapping and site capture
Color and depth together for navigation, inspection, and records of real sites.
World models and simulation
Real places with real 3D structure for training and reconstruction.
Built for robots
Designed to run on robots, all day
Time-synced
Every frame matches your robot's clock and sensor data.
ROS 2 ready
Drivers for the robotics stack your team already uses.
IMU and GPS
Position and motion recorded with every frame.
Mounts
Ready-made mounts for the most popular quadrupeds and humanoids. Other robots on request.
Built in the US
A supply chain your security and compliance teams can approve.
For robot makers
Building a robot?
We work with robot makers to design Alia360 3D into their platforms. It mounts as one unit and runs on the robot's own compute or ours.
- Designed into humanoids, quadrupeds and wheeled robots
- Runs on the robot's own compute or ours
- Integration support from our engineering team
- US company, US-held IP
Write to sales@dreamvu.ai about integration.
Patents
Patented optics.
The optical design of Alia360 3D is protected by a patent family covering optics, electronics, software and calibration, filed in multiple countries. Representative granted patents are listed here.
- US 11,677,921System and Method for Generating Dewarped Image Using Projection Patterns Captured from Omni-Directional Stereo CamerasGranted 2023 · DreamVu, Inc.
- US 11,025,888System and Method for Capturing Omni-Stereo Videos Using Multi-SensorsGranted 2021 · DreamVu, Inc.
- US 10,154,249System and Method for Capturing Horizontal Disparity Stereo PanoramaGranted 2018
Be first to see Alia360 3D.
Join the launch list and we will be in touch before CES.
Join the launch list
